DIAMONDWK polycrystalline round diamond pcd wire drawing dies

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $16.00
  • >=10 Pieces
    $15.30
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
DIAMONDWK
Model Number:
DIES-001
Shaping Mode:
Die Casting
Product Material:
polycrystalline diamond
Product:
pcd dies
Product Name:
PCD dies
Mould material:
polycrystalline diamond
Certification:
ISO9001:2008
Name:
diamond drawing dies
Material:
PCD
Abrasive Grain Sizes:
5-10mm
Case:
25*12mm
Hole:
0.1-7mm
DIAMONDWK:
PCD mould
Mould life:
long
Supply Ability
Supply Ability:
9885444 Piece/Pieces per Month DIAMONDWK has the final interpretation authority
Packaging & Delivery
Packaging Details
Package of DIAMONDWK polycrystalline round diamond pcd wire drawing dies: Foam packing / OEM packing
Port
Zhengzhou, shenzhen, ningbo, qingdao, beijing, tianjin, shanghai
Lead Time :
7-10 working days after payment
Product Description

Natural diamond wire drawing dies

Natural diamond wire drawing dies has excellent wear resistance and high quality surface finish, suitable for a variety of fine wire, drawing precious metal wire can reduce wear, improve wire surface finish, specification range 0.01-1.5mm.

Mono diamond wire drawing dies

Mono diamond’s feature is similar with Natural diamond. Drawing surface is very fine, good polishing. Hole can keep well in round shape when drawing. It is used for fine metal wires. Like copper, golden wire . silver wire and so on.

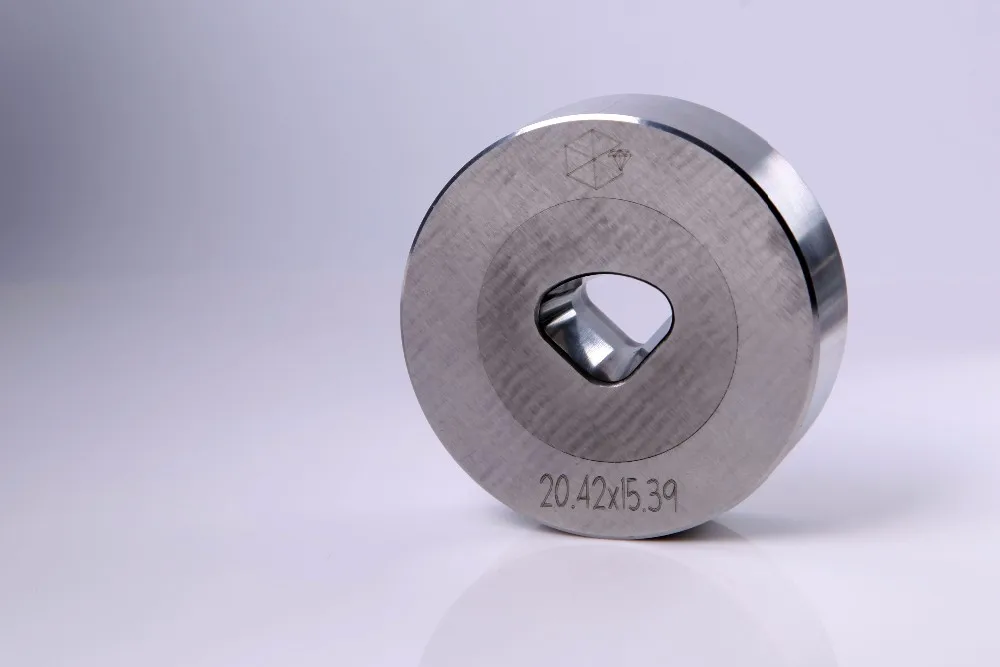

Special shaped polycrystalline diamond mold

Selection imported and domestic high-quality mold processing, support hexagonal, square, flat square, triangle, circle, and various special-shaped hole requirements, suitable for drawing copper flat wire, square wire, zipper flat wire, stainless steel special-shaped wire drawing, has long service life, high precision, strong wear resistance and other characteristics.

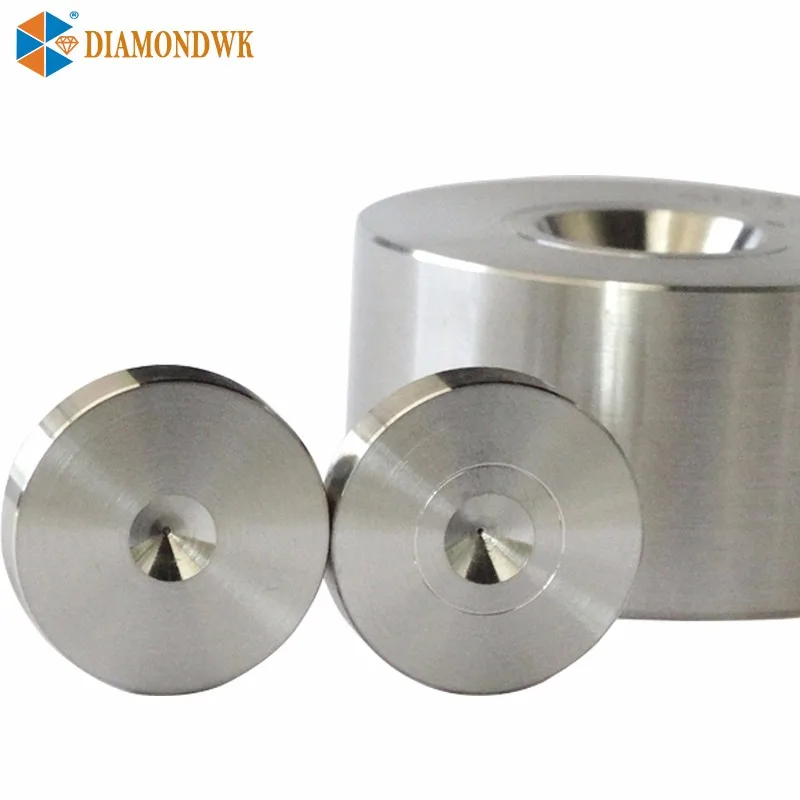

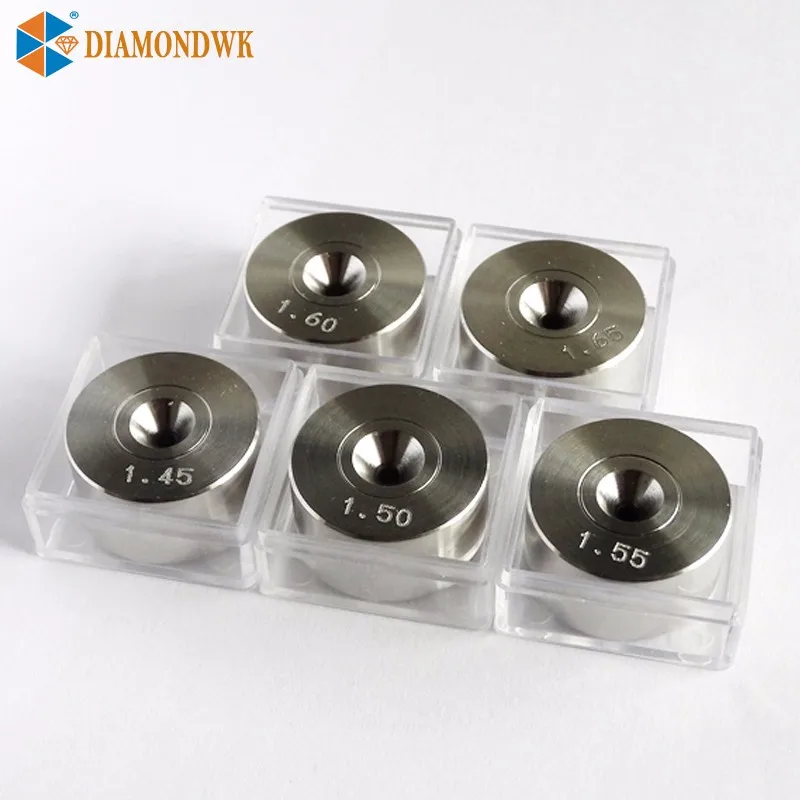

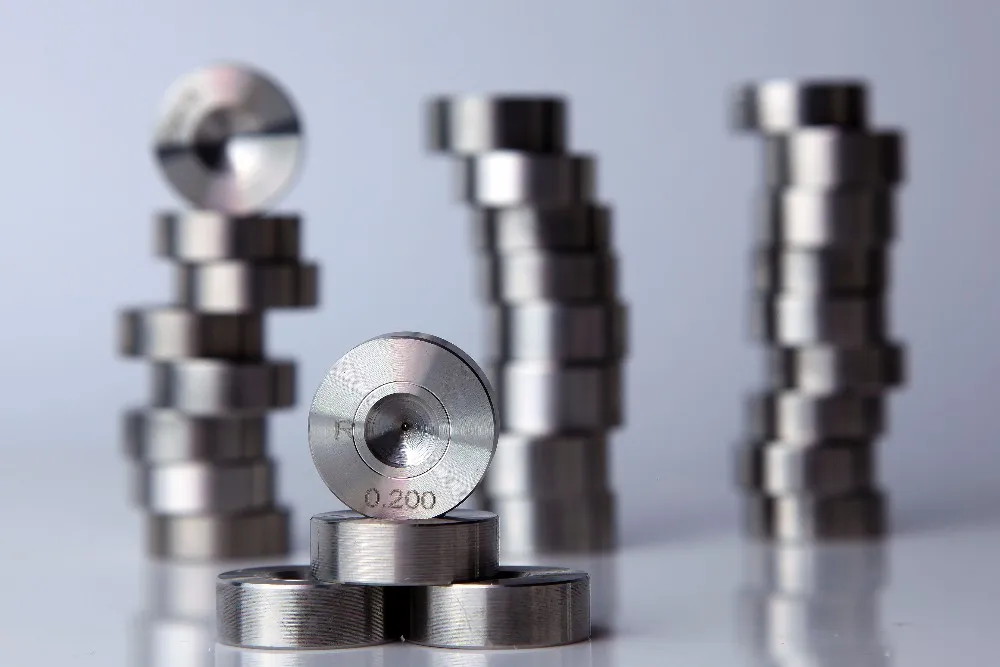

PCD diamond wire drawing dies


PCD diamond wire drawing dies has long drawing life, has widely application range, can be repaired many times, specifications range 0.08-15mm.

Parameters of wire drawing dies
Item
Hole(mm)
Case(mm)
Grit(um)
Usage
PCD size
PCD die
0.100-0.300
25*12
5-10
metal wire
2510
PCD die
0.301-0.500
25*12
5-10
metal wire
2510
PCD die
0.501-1.000
25*12
5-10
metal wire
3215
PCD die
1.001-1.200
25*12
5-10
metal wire
4020
PCD die
1.201-1.500
25*12
5-10
metal wire
5225
PCD die
1.501-1.700
28*12
5-10
metal wire
5235
PCD die
1.701-1.900
28*12
5-10
metal wire
5235
PCD die
1.901-2.100
28*12
5-10
metal wire
6040
PCD die
2.101-2.300
28*12
5-10
metal wire
6040
PCD die
2.301-2.500
30*15
5-10
metal wire
6040
PCD die
2.501-2.800
30*15
5-10
metal wire
6040
PCD die
2.801-3.000
30*15
5-10
metal wire
6040
PCD die
3.001-3.300
30*15
5-10
metal wire
7040
PCD die
3.301-3.500
30*15
5-10
metal wire
8040
PCD die
3.501-3.800
40*25
5-10
metal wire
10*6
PCD die
3.801-4.500
40*25
5-10
metal wire
13*8
PCD die
4.501-5.000
40*25
5-10
metal wire
14*10
PCD die
5.001-5.500
40*25
5-10
metal wire
14*10
PCD die
5.501-6.000
40*25
5-10
metal wire
16*10
PCD die
6.001-6.500
50*27
5-10
metal wire
18*10
PCD die
6.501-7.000
50*27
5-10
metal wire
18*10
Packing & Delivery

Delivery & Packing

We will use carton package, and also can support your requirement if you need carton or other kind of package. of cause will add a little fees.We support express, air way, and by sea shipping.
Express like DHL, FedEx, TNT, UPS, EMS, etc.
Usually, we will arrange the shipping within 7 working days after we confirm the contract.

Our Company

Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order.

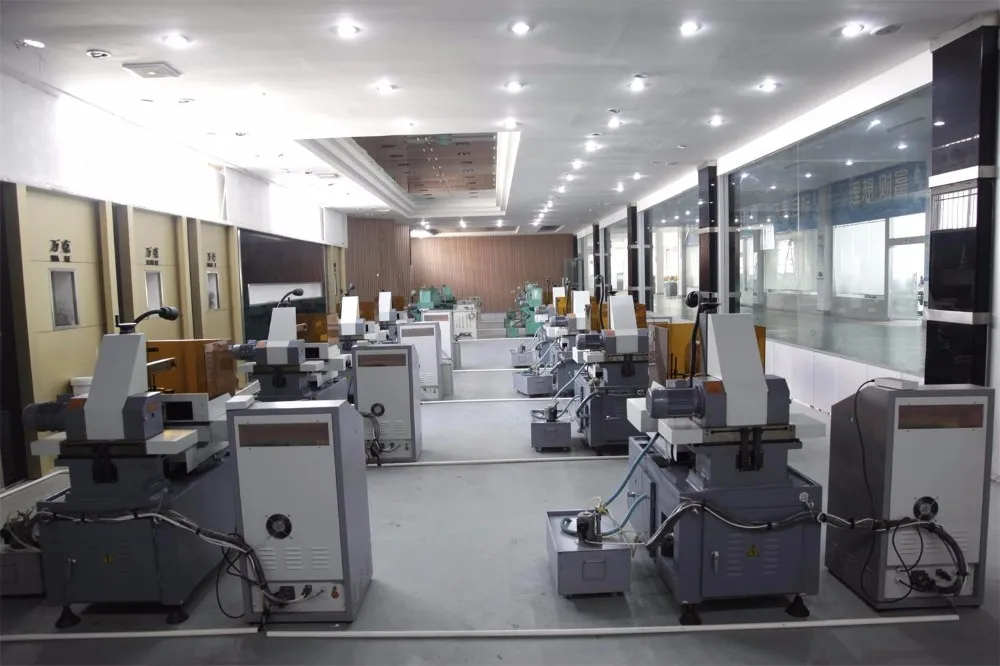

3. Advanced production equipment.
4. Own design team, can help you custom the packaging.
5. Own provincial engineering technology center.
6. D&B and ISO9001 certificates


DIAMONDWK is a professional synthetic diamond powder, PDC cutter, dies blank company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.Warmly welcome all partners to join DIAMONDWK for mutual benefits cooperation.
